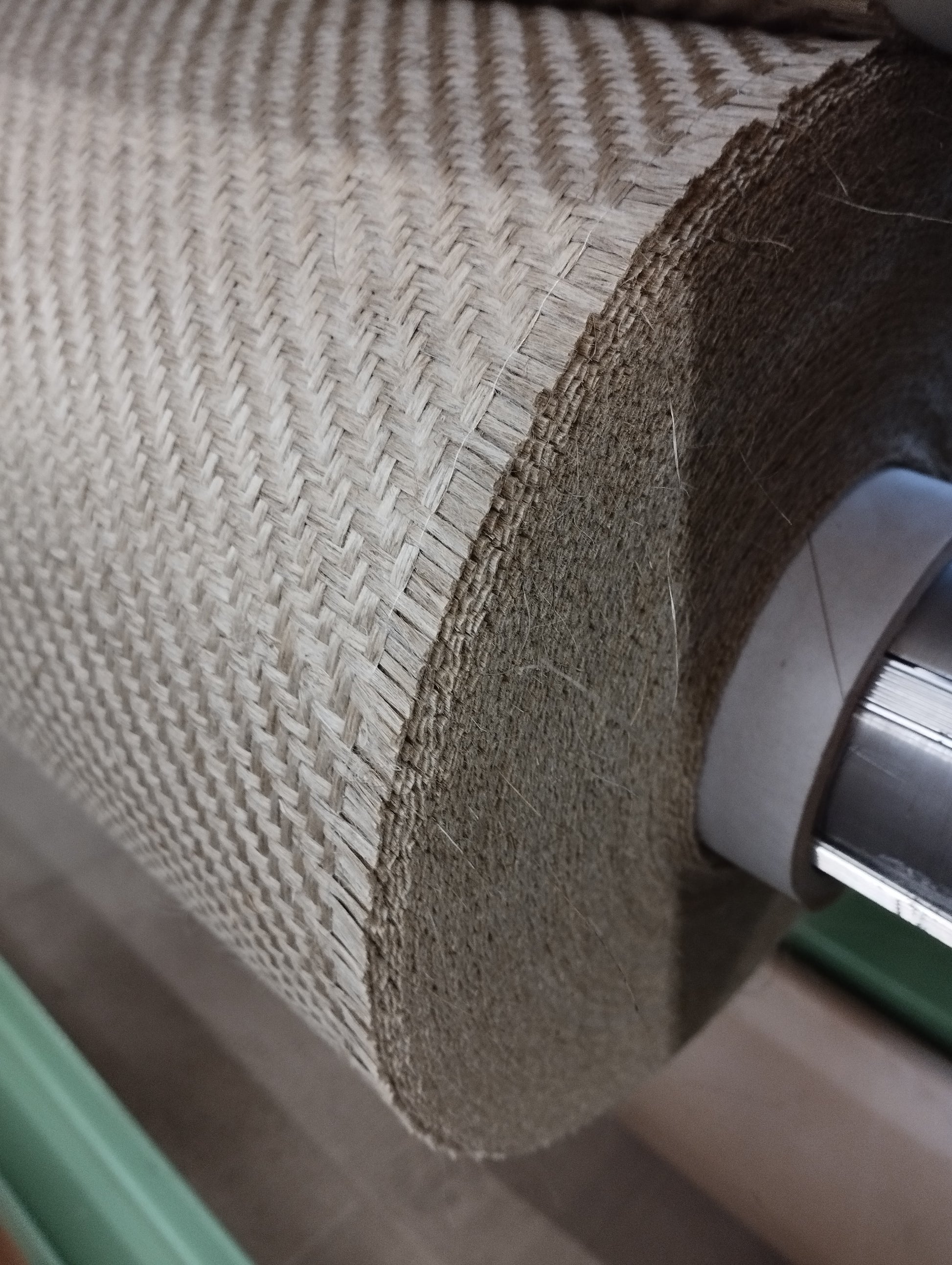

2/2 Twill/ Köper (+/-90) Flax Fabric
2/2 Twill/ Köper (+/-90) Flax Fabric
Couldn't load pickup availability
Introduction
Our Flax Fibre Reinforcement Fabrics are developed for diverse fibre-reinforced polymer composite applications. Compatible with various resins, they are ideal for vacuum infusion, resin transfer molding (RTM), compression molding, and prepreg.
Our fabrics stand out for their high performance, ease of processing, and notably lower environmental impact compared to synthetic fibers. The flax fibers, grown in France and Belgium, aid in reducing global warming due to CO2 sequestration during growth.
Constructed with top-quality, twist-free flax fiber rovings, these fabrics ensure optimum fiber orientation and performance. Their versatility makes them suitable for a multitude of structural and semi-structural applications across various industries, including automotive, construction, marine, sports, and consumer goods.
|
Fabric specifications |
|
|
Style |

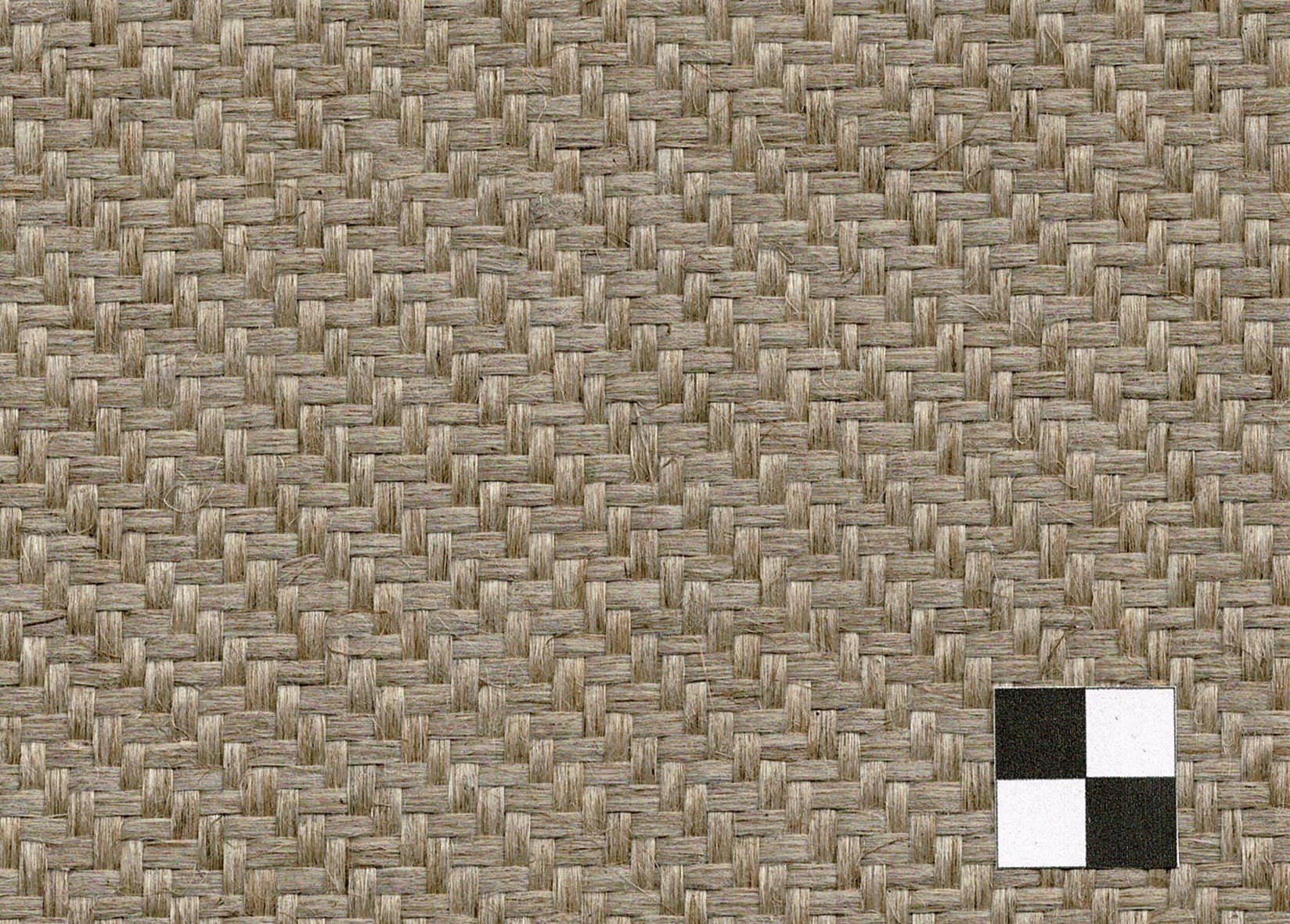

Köper/ Twill 2x2 |
|
Warp yarn |
Twist-Free LINCORE® Flax Roving, 520 TEX, approx. 187.5 g/m2 |
|
Weft yarn |
Twist-Free LINCORE® Flax Roving, 520 TEX, approx. 187.5g/m2 |
|
Threads in warp / 10 cm |
36 +/- 0.5 ends/cm |
|
Threads in weft / 10 cm |
36 +/- 0.5 picks/cm |
|
Total weight |
approx. 375g/m2 |
|
Tolerance on weight |
+/-10g/m2 |
|
Width |
1270mm |
|
Tolerance on width |
+/-20mm |
|
Selvedge |
Fringed selvedge |
|
Flax fibre properties* |
|
|
Density |
1.5g/cm3 |
|
Diameter** |
20 μm |
|
Tensile modulus |
50 GPa |
|
Tensile strength |
500 MPa |
|
Strain |
2% |
*Flax fibre is a natural product and a certain amount of variation should be expected.
**Flax fibre has a non-circular cross-section.
Sizing
Our Reinforcement fabrics are supplied unsized as standard. Sizings are possible on request.
|
Packaging details |
|
|
Roll width |
1270mm |
|
Roll length |
50m |
|
Net weight |
25kg |
|
Core |
Cardboard tube |
|
Wrapping |
Polythene film |
Request Technical Data Sheet (TDS) for additional information.
Delivery: Ex Works, Germany
Delivery time: 1-2 Weeks
