Interior Sandwich Panel
Technical Data Sheet
General Description:
Our Interior Sandwich Panel is a lightweight sandwich panel specifically developed for use in demanding off-road and expedition vehicles. With a focus on lightweight construction, high strength, and sustainability, it offers a groundbreaking solution for modern vehicle interiors.
Material Composition:

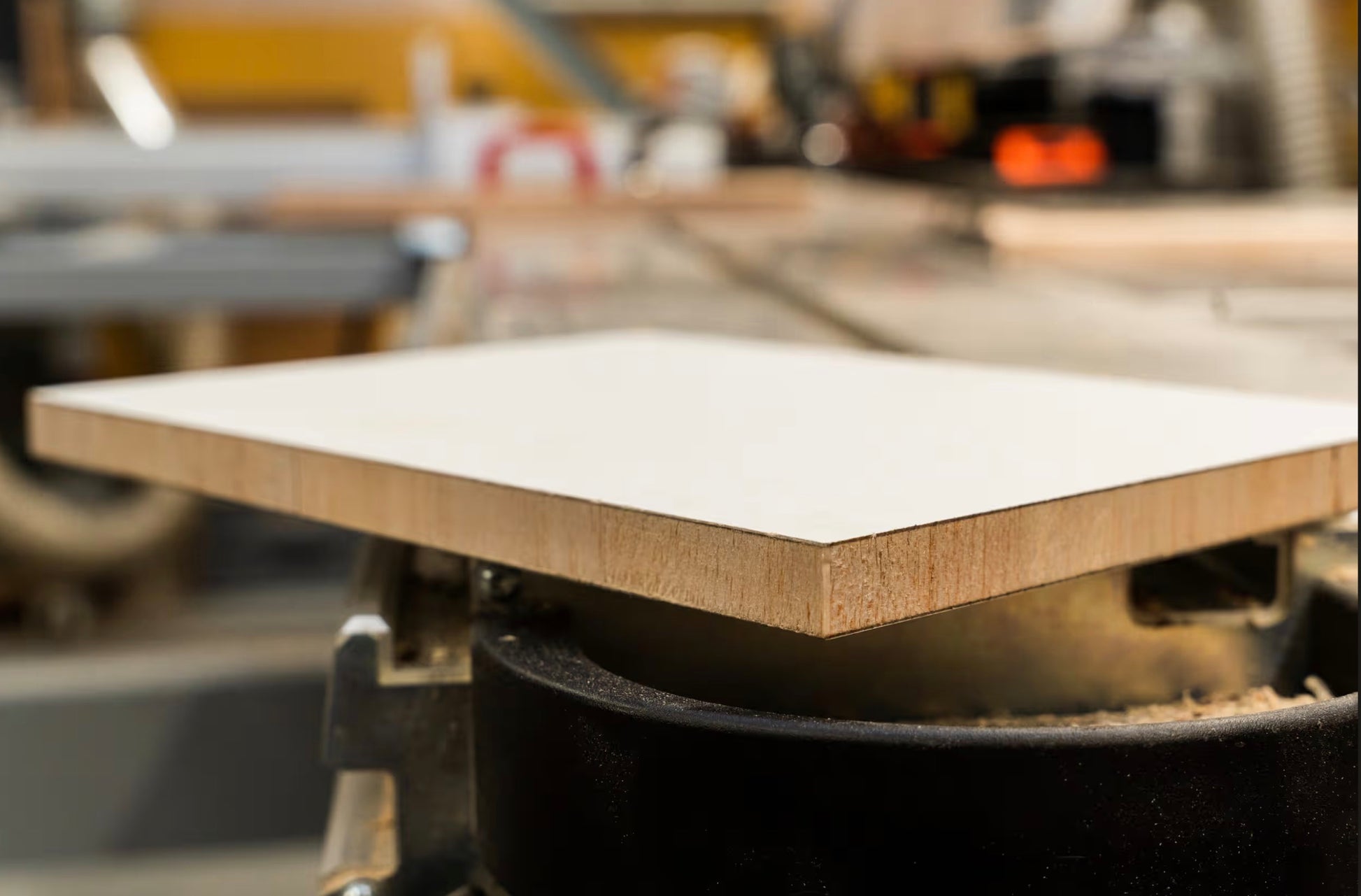

- Core Material: End-grain balsa wood (15 mm), density approx. 100 kg/m³
- Face Sheets: Cellulose Fibres & Plant based resin
- Edge/Mounting Zone: A 50 mm wide strip of high-density core material is integrated to allow for the secure installation of hardware
Applications:

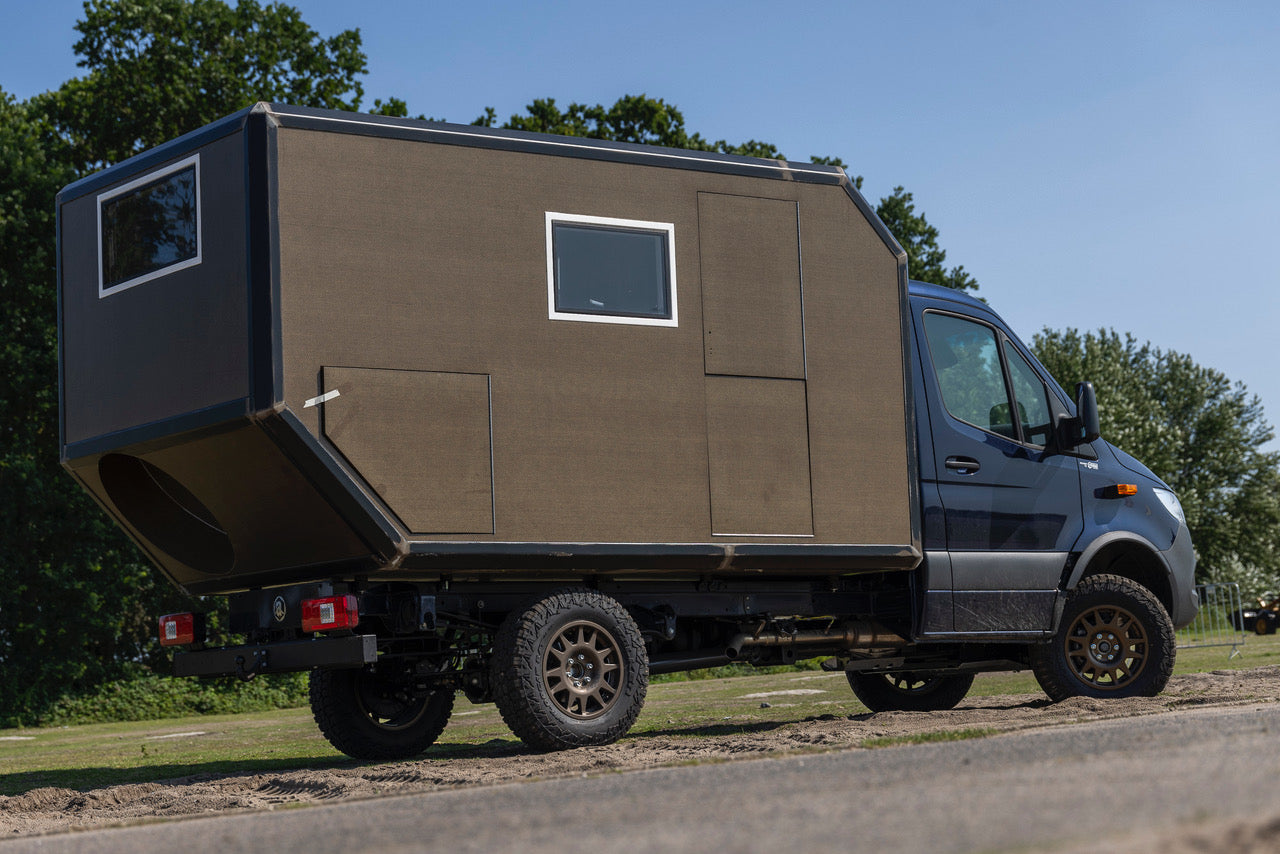

- Walls and furniture in expedition vehicles
- Applications where weight reduction and robustness are critical
Technical Specifications:
| Property | Unit | Value |
|---|---|---|
| Panel Thickness | mm | 17 (+/- 1 mm) |
| Panel Weight | kg/m² | ≈ 4.5 |
| Core Material Density | kg/m³ | 100 (end-grain balsa wood) |
| Compressive Strength | MPa | 5.5 (depending on moisture and temperature) |
| Shear Modulus | MPa | 136 |
| Thermal Conductivity | W/mK | 0.045 - 0.048 (at 23°C) |
Advantages That Make a Difference:
Lightweight Construction for Maximum Payload
With a weight of less than 4.5 kg/m², the Sherpa Panel enables significant weight savings. For a vehicle with 40 m² of installed panels, this translates to an additional payload capacity of up to 100 kg—ideal for extra luggage, equipment, or even an additional passenger.
For more detailed information request Technical Data Sheet (TDS)
Finish: White, ready to use
Delivery Terms:
Ex Works, Germany
Delivery Time:
Approx. 2-4 Weeks
Any Questions?
If your project requires specific materials or dimensions not listed, please feel free to contact our sales support. We are committed to enabling manufacturers to exploit the full benefits—both lightweight and sustainable—of Natural Fiber Composites.
