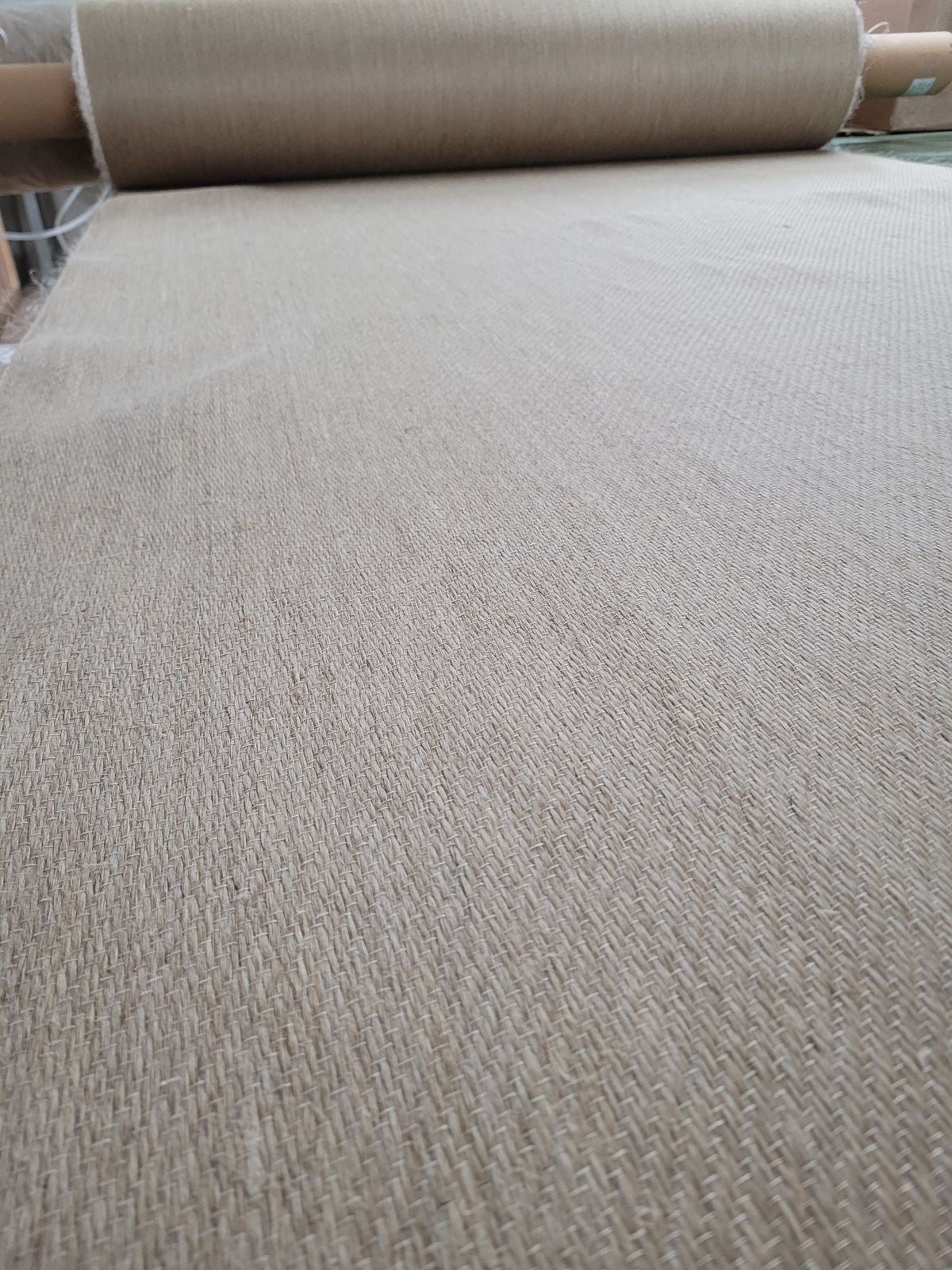

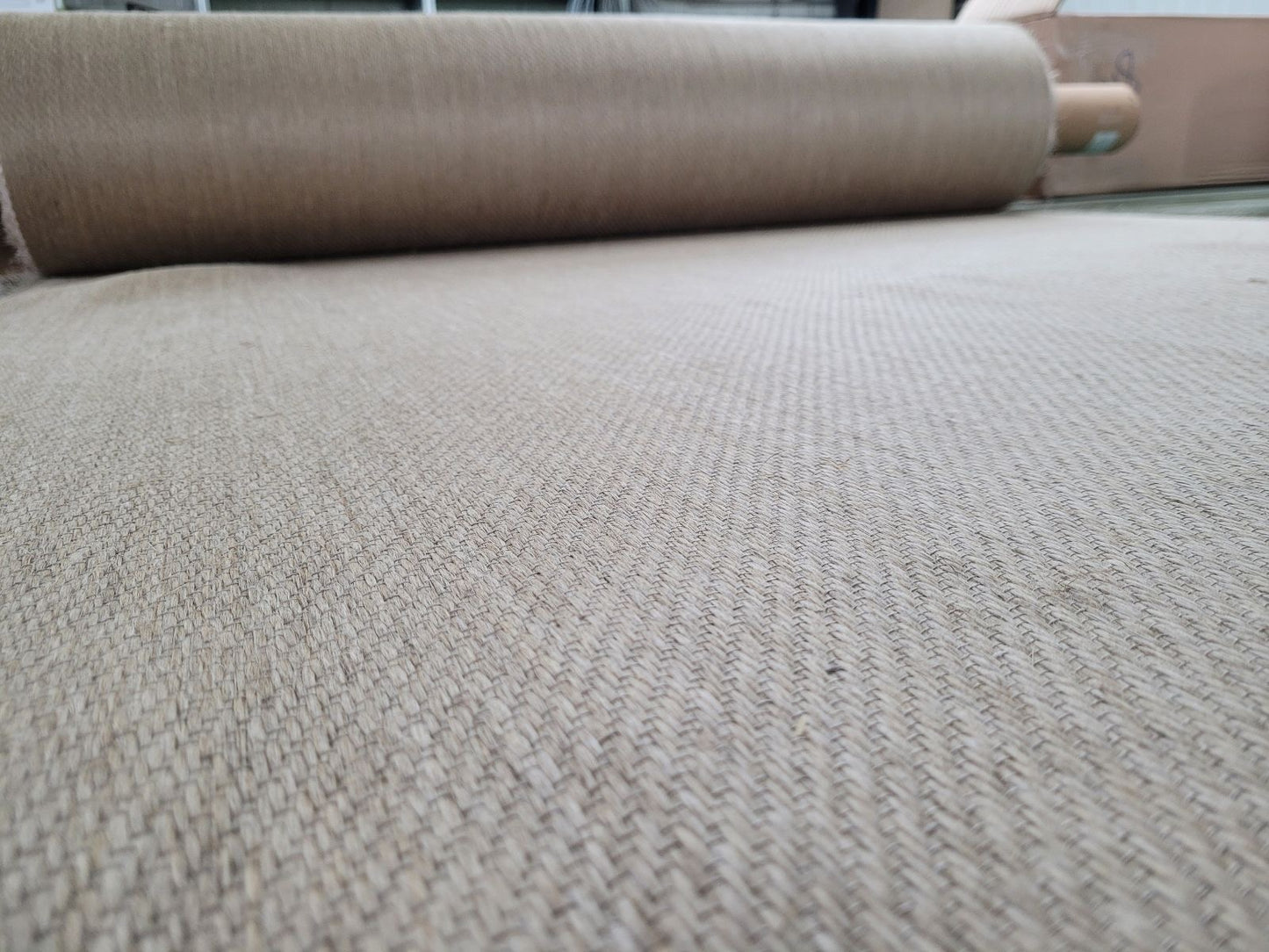

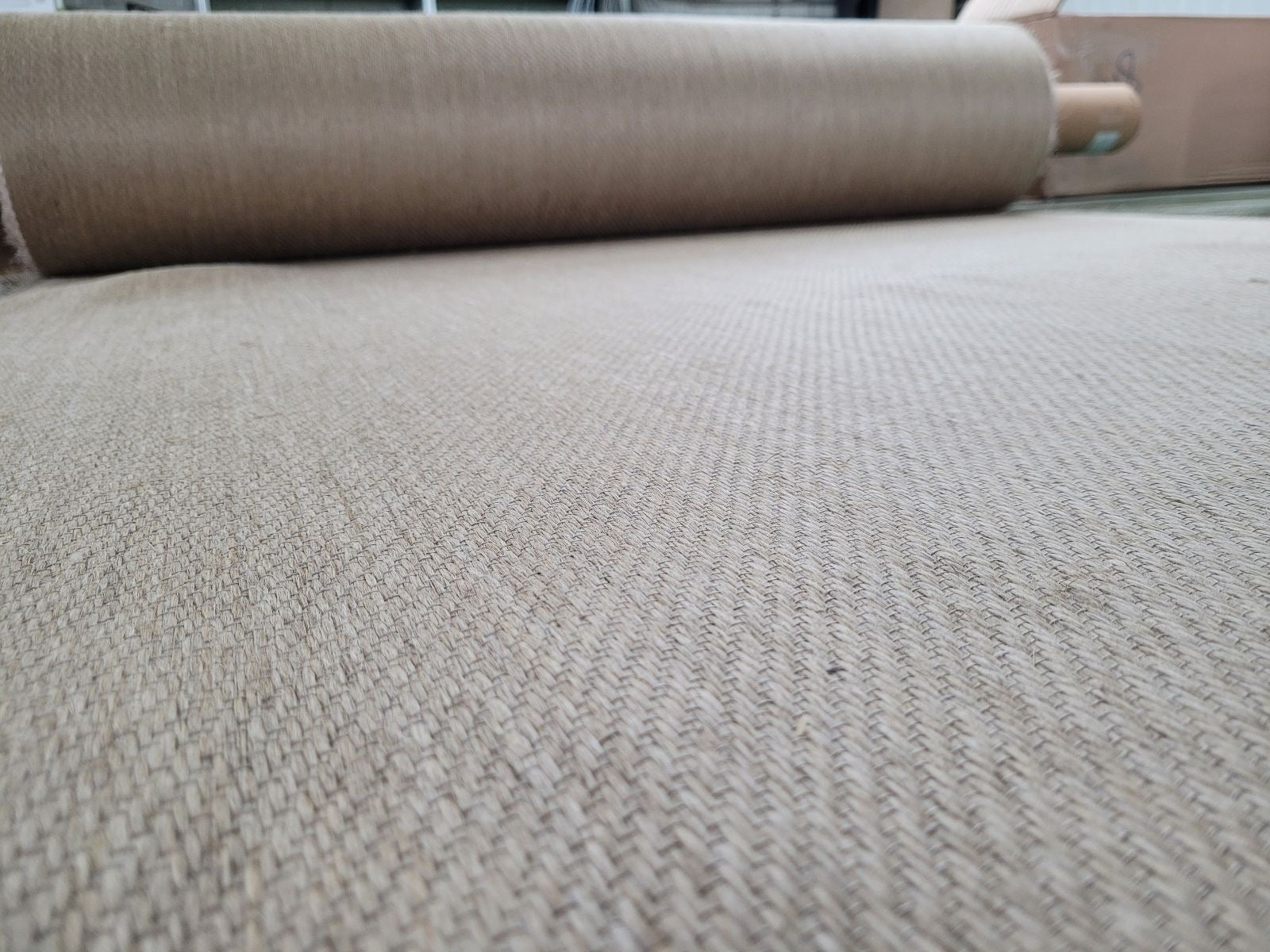

Unidirectional Flax Fabric
Unidirectional Flax Fabric
Couldn't load pickup availability
Introduction

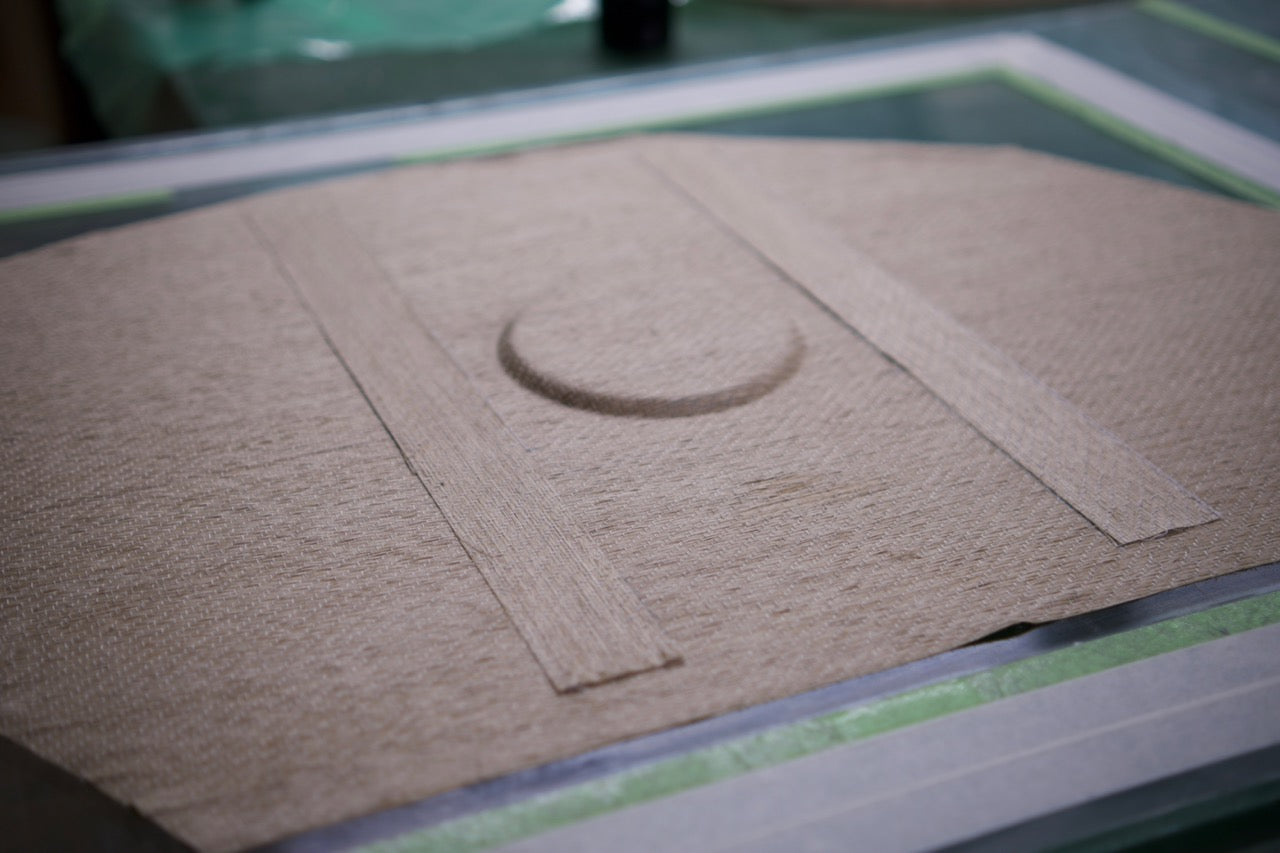

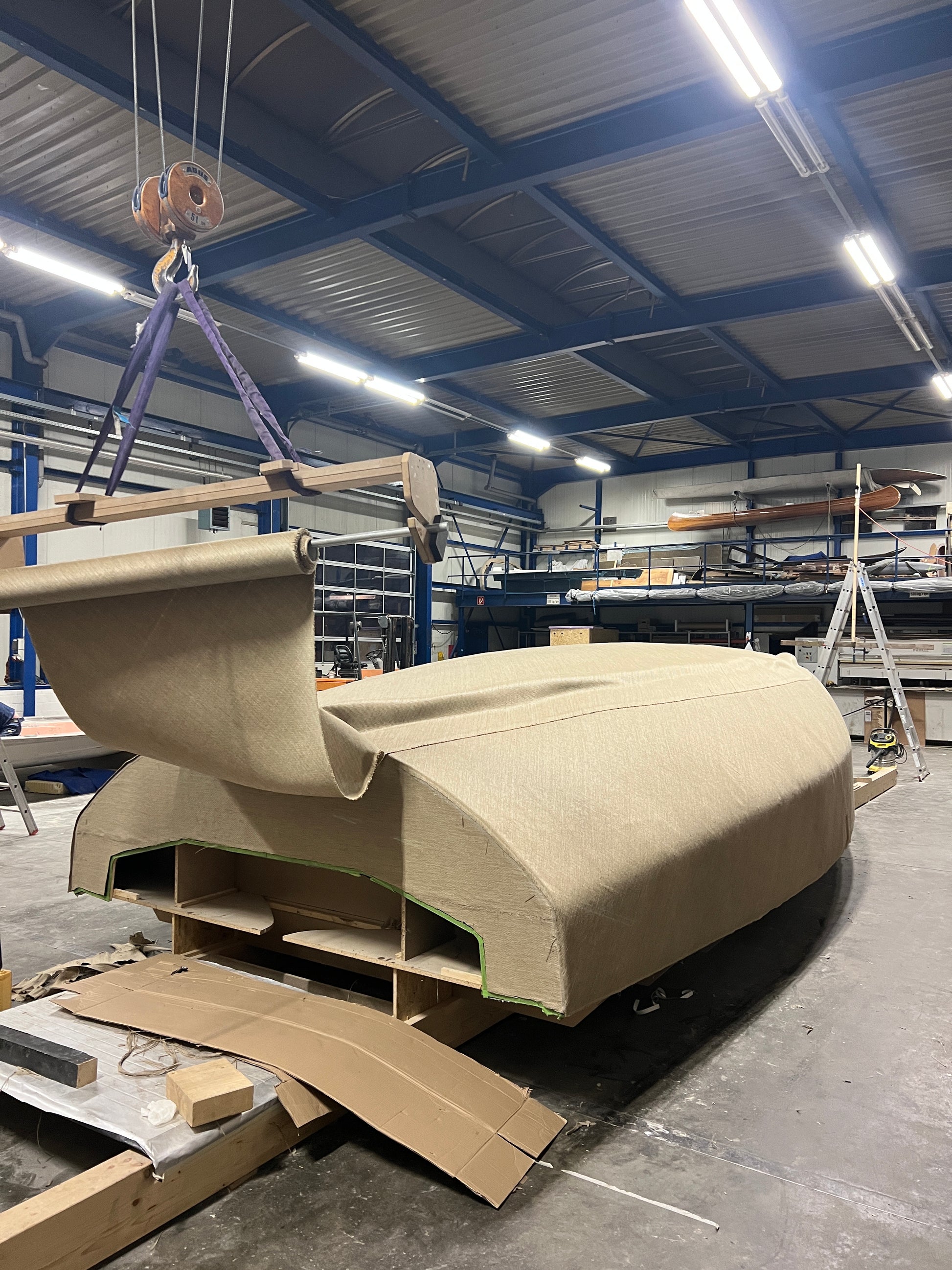

Our Flax Fibre Reinforcement Fabrics are developed for diverse fiber-reinforced polymer composite applications. Compatible with various resins, they are ideal for vacuum infusion, resin transfer molding (RTM), compression molding, and prepreg.
|

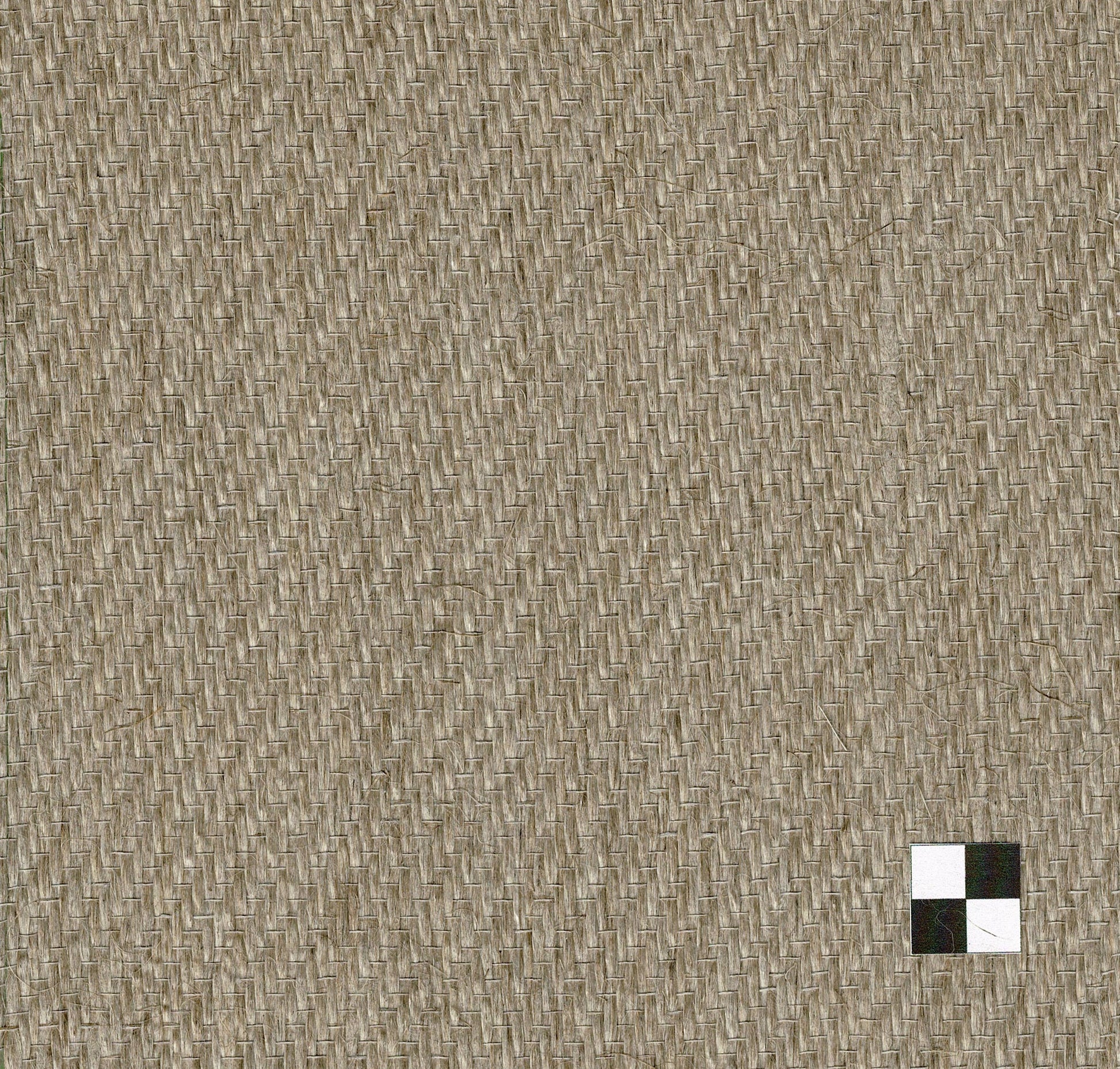

Fabric specifications |
|
|
Style |
Unidirectional |
|
Warp yarn |
Twist-Free LINCORE® Flax Roving, 520 TEX |
|
Weft/carrier yarn |
Twisted Flax Roving 44 TEX |
|
Warp count |
5,5 ends/cm |
|
Weft count |
1 pick/cm |
|
Total weight |
approx. 290g/m2 |
|
Tolerance on weight |
+/-5% |
|
Width |
1270mm |
|
Tolerance on width |
+/-2% |
|
Flax fibre properties* |
|
|
Density |
1.5g/cm3 |
|
Diameter** |
20 μm |
|
Tensile modulus |
50 GPa |
|
Tensile strength |
500 MPa |
|
Strain |
2% |
*Flax fibre is a natural product and a certain amount of variation should be expected.
**Flax fibre has a non-circular cross-section.
|
Packaging details |
|
|
Roll width |
1270mm |
|
Roll length |
50m |
|
Net weight |
25kg |
|
Core |
Cardboard tube |
|
Wrapping |
Polythene film |
Orders for multiple rolls are typically packed in a cardboard carton on a standard wooden pallet and covered with stretch wrap.
Storage
Our Reinforcement fabrics should be stored in a cool dry place away from direct sunlight. Flax fibre can absorb moisture from the atmosphere so drying may be required before use, especially if exposed to excessive humidity.
Safety
Flax fibre is a naturally occurring, non-hazardous material, but typical precautions should be taken when handling the material including using appropriate PPE and adequate ventilation.
Disclaimer
The information provided here is believed to be accurate but should be considered indicative only. It is the responsibility of the customer to check the suitability of the product for their specific application prior to use.
Delivery: Ex Works, Germany
Delivery time: 1-2 Weeks
